For this handelbars, there is a technical report with one addendum for the 3 hole cable inside wiring

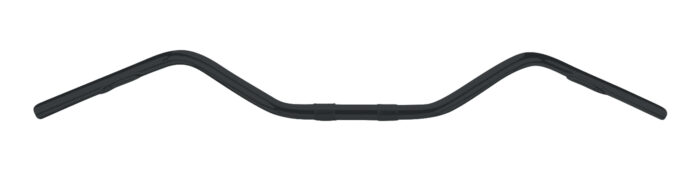

Handlebar for Chopper and Cruiser 990 mm wide, black
Handlebar Ø 25,4 mm (1") with notch for cabels and 3 holes for inside wiring
125,72 €
Auf Lager / In Stock
incl. VAT plus shipping cost
Delivery time: 3-5 Days
Auf Lager / In Stock
Description
Technical dimensions: Measured with handlebars in vertical position (dimensions in mounting position may vary greatly)
| a | 990 | Width |
| b | 125 | Height at the end of the outer bend |
| c | 220 | Depth to rear |
| d | 130 | Height at end of grip |
| e | 230 | Measured at intersection of tube outer edges |
Dimensions in mounting position: (Dimensions may vary depending on handlebars and mounting).
| 125 | Height | |
| 195 | Depth to rear (Pullback) |
Other dimensions:
| 260 | Maximum handle length | |
| 175 | Maximum clamp width | |
| 120 / 60 | Width of knurling (outside / inside) |
Technical ReportAdditional information
| Weight | 1,9 kg |
|---|---|
| Dimensions | 98 × 24 × 9 cm |
