Description

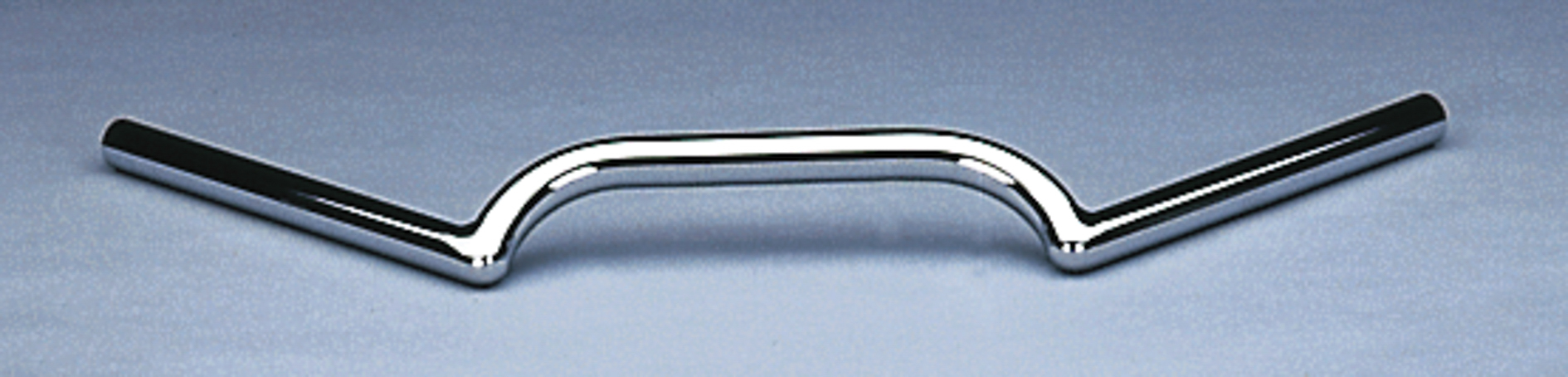

7093
Technical dimensions: Measured with handlebars in vertical position (dimensions in mounting position may vary greatly)
| a | 575 | Width |
| b | 104 | Height at the end of the outer bend |
| c | 150 | Depth to rear |
| d | 67 | Height at end of grip |
| e | 230 | Measured at intersection of tube outer edges |
Dimensions in mounting position: (Dimensions may vary depending on handlebars and mounting).
| 50 | Height | |
| 120 | Depth to rear (Pullback) |
Other dimensions:
| 200 | Maximum handle length | |
| 124 | Maximum clamp width | |
| 120 / 60 | Width of knurling (outside / inside) |
