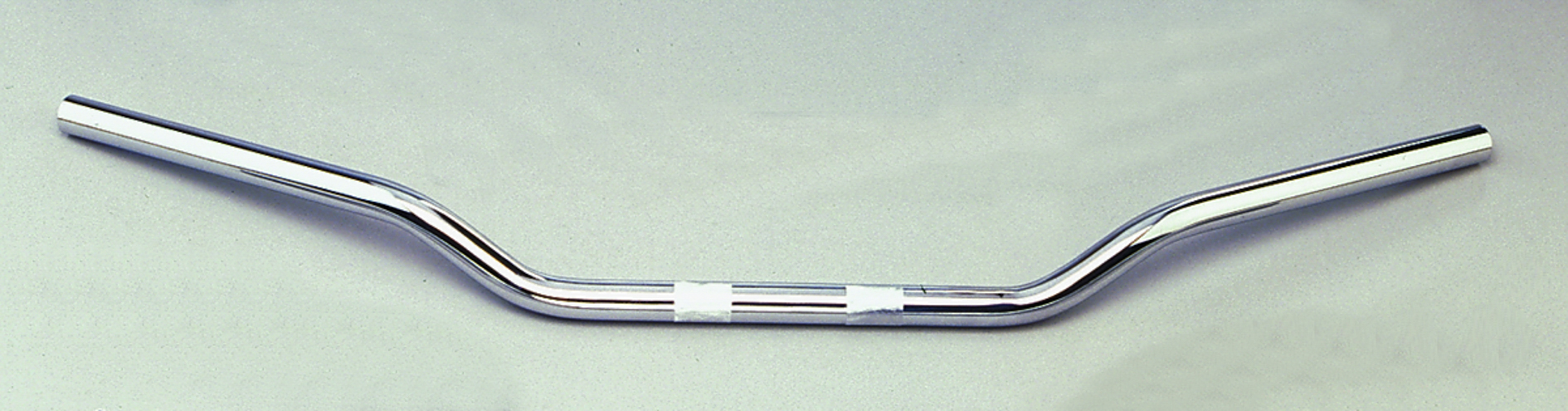

Description





Technical dimensions: Measured with handlebars in vertical position (dimensions in mounting position may vary greatly)

a 810 Width
b 75 Height at the end of the outer bend
c 105 Depth to rear
d 100 Height at end of grip
e 310 Measured at intersection of tube outer edges

Dimensions in mounting position: (Dimensions may vary depending on handlebars and mounting).

75 Height
125 Depth to rear (Pullback)

Other dimensions:

205 Maximum handle length
166 Maximum clamp width
120 / 60 Width of knurling (outside / inside)
