Description

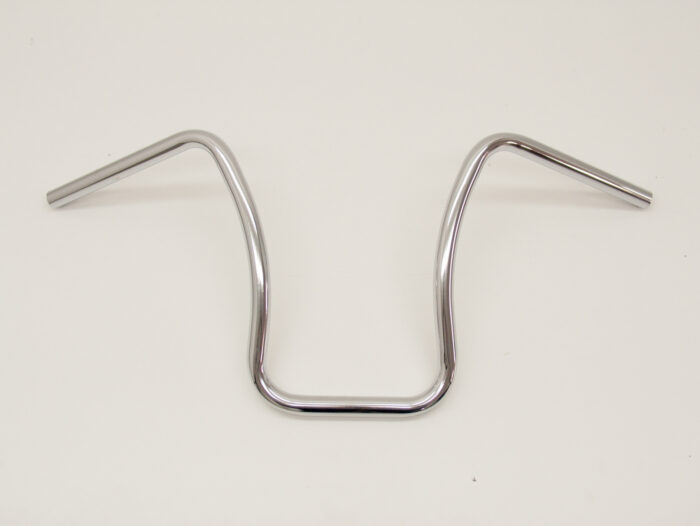

Technical dimensions: Measured with handlebars in vertical position (dimensions in mounting position may vary greatly)

a 800 Width
b 375 Height at the end of the outer bend
c 180 Depth to rear
d 270 Height at end of grip
e 270 Measured at intersection of tube outer edges

Dimensions in mounting position: (Dimensions may vary depending on handlebars and mounting).

275/300 Height
135/255 Depth to rear (Pullback)

Other dimensions:

220 Maximum handle length
130 Maximum clamp width
120 / 60 Width of knurling (outside / inside)
